RMP 01F

NP ELECTRONIC

Supply Voltage: 3x380V AC
Operation Frequency: 50/60 Hz
Voltage Control Range: 330V - 430V (sabit)
Delay (relay off) Time: 1 sec. (sabit)
Operation Temperature: -5....+55°C
Protection Class: IP 20
Sensitivity: ±%1

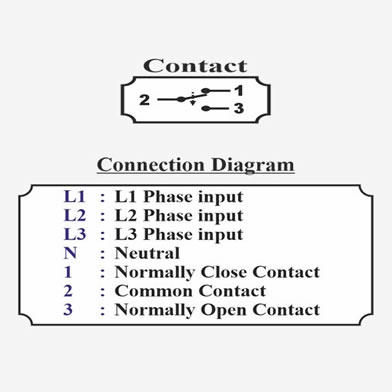

Relay Contact: 7A - 250V AC (NC+NO)
Dimensions (mm): 23x82x75 (SMP-01F) 30x60x90 (RMP-01F)
Net Weight: 100 GR
