RDVP3

Supply Voltage: 3x380V AC
Operation Frequency: 50/60 Hz
Voltage Control Range: Vdn:360V - 360V (adjustable) Vup:400V - 460V (ayarlanabilir)
Off Delay Time: 1 - 180 sec. (adjustable)
On Delay Time: 1 - 180 sec. (adjustable)
Screen: 2x3 digit, Led Screen
Operation Temperature: -5....+55°C
Protection Class: IP 20
Sensitivity: ±%1

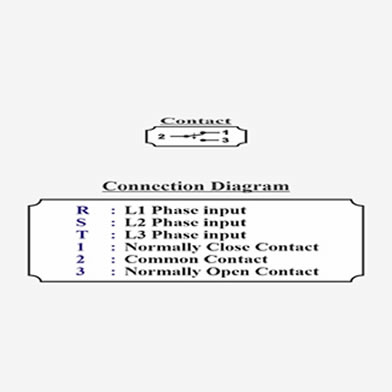

Relay Contact: 7A - 250V AC (NC+NO)
Dimensions (mm): 30x60x90 mm.
Net Weight: 150 GR
