RVP02

Supply Voltage: 220V AC
Operation Frequency: 50/60 Hz
Voltage Control Range: Vdn: 140V - 210V (ayarlanabilir) Vup: 230V - 270V (ayarlanabilir)
Off Delay Time: 0,1 - 3 min. (adjustable)
On Delay Time: 1 sec. (sabit)
Operation Temperature: -5....+55°C
Protection Class: IP 20
Sensitivity: ±%1

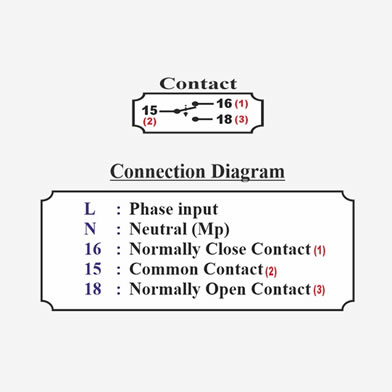

Relay Contact: 7A - 250V AC (NC+NO)
Dimensions (mm): 23x82x75 (SVP-02) 30x60x90 (RVP-02)
Net Weight: 140 GR
