EM05

NP ELECTRONIC

Supply Voltage: 220V AC 50 Hz (Phase+Neutral)

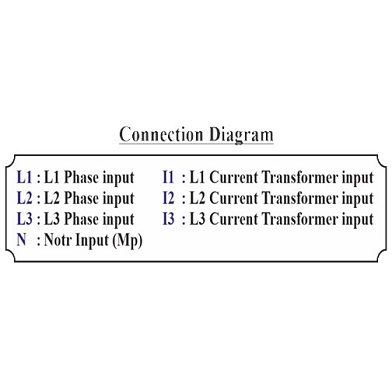

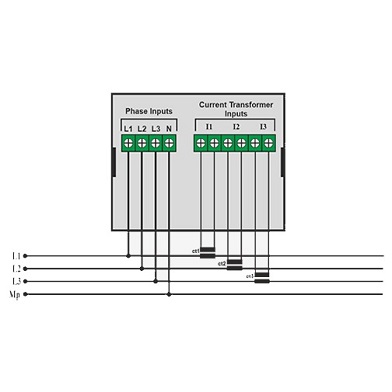

Voltage Input: L1, L2, L3, Mp
Current Transformer input: 5/5 ........ 10.000/5 (ayarlanabilir) (3 giriş)
Measurement Range: 0 - 500V AC (1x3 digit, 9 mm display) (L1, L2, L3, L1-L2, L1-L3, L2-L3 selectable) 0,1 - 10.000 A AC (3x3 digit, 9mm display) 20 - 500 Hz (1x3 digit, 9mm display)
Screen (Display): 5x3 digit, 9mm kırmızı ekran
Operation Temperature: -5....+55°C
Protection Class: IP 20
Sensitivity:  ±%1
Connection: 1x6 and 1x4 Soket Klemens
Dimensions (mm): 96x96x45
Net Weight: 410 gr
