RDVP1

NP ELECTRONIC

Supply Voltage: 3x380V AC
Operation Frequency: 50/60 Hz
Voltage Control Range: Vdn: 150V - 210V (adjustable) Vup: 230V - 270V (adjustable)
Off Delay Time: 0,1 - 3 min. (
adjustable)
On Delay Time: 1 sec. (sabit)
Screen: 2x3 digit, Red Display
Operation Temperature: -5....+55°C
Protection Class: IP 20
Sensitivity: ±%1

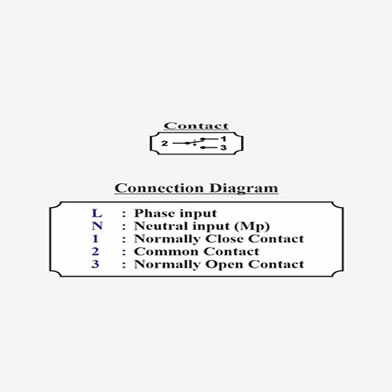

Relay Contact: 7A - 250V AC (NC+NO)
Dimensions (mm): 30x60x90)
Net Weight: 150 GR
